Yearly Archives: 2019

November 2019

Diameter18mm Injection Packers

By |2019-11-11T14:35:31+08:00November 11th, 2019|blog|

This kind of Injection Packers can be used Injections of the cracks. Sealing injections. Epoxy resins, polyurethane resins.
It is High quality product. Good tightness. Perforated long rubber
provides very good fixing. Head has tube corpus which at given length
makes fixing much easier. Adapted for high quality Hexagonal nipple or Button / Flat head nipple.

October 2019

Injection Lances

By |2023-09-27T16:08:41+08:00October 26th, 2019|blog|

13x1000mm Steel Injection lances , it is used for filling voids in the ground with injection material, increasing the bearing capacity of the building ground, and renovations of the buildings.

August 2019

new design steel packers

By |2019-08-10T14:29:22+08:00August 10th, 2019|blog|

New design steel packers

We have our  research and development department can custom any packers for our customers. this new design packers is for one of our important customer. if anyone who wanna custom packers, please feel free to contact us by [email protected] .

Process Of Chemical Grouting

By |2019-08-10T02:51:16+08:00August 10th, 2019|blog|

Process Of Chemical Grouting

The construction of high-pressure chemical grouting shall be carried out by the construction team with professional training person and professional construction equipment.

  1. Cleaning: check and analyze the leakage in detail, and determine the location and spacing of grouting holes. Clean up the necessary construction area, chisel off the concrete surface precipitation, to ensure that the surface is clean and wet.
  2. Drilling: use electric hammer and other drilling tools to drill along both sides of the crack. The diameter of the drill bit is the same as that of the grouting nozzle (watertight needle). The drilling Angle should be ≤ 45° and the drilling depth ≤ 2/3 of the structural thickness. However, the interval between boreholes and cracks is not equal to 1/2 of the structural thickness (except for post-wall grouting). Drilling spacing is 20cm~30cm.
  3. insert packers: install grouting nozzle (also known as watertight needle) Injection Packer in the well-drilled hole, and tighten it with special hexagon wrench, so that there is no gap between grouting nozzle and drilling hole, no water leakage.
  4. Seam cleaning: use high-pressure cleaning machine to inject clean water into the mechanical packers at the pressure of 6Mpa, observe the outlet point, and clean the dust in the seam.
  5. Sealing cracks: the surface of leaking cracks shall be sealed with cement-based waterproof material during washing cracks, so that the materials can not seepage when injecting Chemical Grouting Materials
  6. Grouting: use high pressure Injection Grouting Machine to inject chemical grouting material into grouting hole. Elevation grouting sequence is bottom up; The plane can start at one end, one hole at a time. When the adjacent hole starts to grouting, maintain the pressure for 3~5 minutes, the grouting of this hole can be stopped, and the grouting of the adjacent hole can be changed.
  7. Remove the packers : after grouting, remove or knock out the exposed grouting nozzle after confirming no leakage. Clean up the solidified spilled irrigation fluid.
  8. Seal: repair and seal grouting surface with cement-based waterproof material.
  9. Waterproof: Smear the chemical grouting position three times with a single component waterproof material (bottom, middle and surface) with a width of 10~20cm, and lengthen 20~30cm at both ends.

July 2019

The advantages of chemical grouts

By |2020-04-03T17:10:37+08:00July 29th, 2019|blog|

The advantages of chemical grouts

  1. High pressure (generally up to more than 20Mpa) , stable and reliable, the chemicals materials can completely permeate the deep micro cracks of the concrete structure; Perfect waterproof effect
  2. Grouting technology is mature, stable quality, resistant to chemical corrosion, non – toxic after curing, environmental protection, permanent waterproof.
  3. The construction process is simple and easy to operate. The construction is fast, the water stop effect is instant. Low labor intensity, and the construction efficiency is 5~10 times compared to the traditional construction method.
  4. The construction is not limited to season and weather, and can be used for various projects, including maintenance, emergency repair and drinking water project. low construction cost, economic benefit

What is Chemical Grouts technology?

By |2019-07-26T03:33:27+08:00July 26th, 2019|blog|

What is chemical grouts technology?

Introduction to chemical grouts technology

Concrete building crack is the main cause of concrete building damage, crack leakage is the most headache problem, because the cracks inside the concrete is completely ruleless. The general traditional plugging method is gouging the crack or leakage, and make surface plugging, but the result is here is blocked the other places begin to leak. Because the water  in the internal cracks is moving irregularly, then seepage from the weak part of the concrete.

Chemical Grouts generally is inject chemical materials to the cracks of its structure  by high pressure injection grouting machine and injection packers so as to achieve the purpose of waterproof, plugging, reinforcing and strengthening. It is often used to repair deep cracks in concrete structure. According to the grouting pressure and speed, it can be divided into high pressure quick grouting method and low pressure slow grouting method.

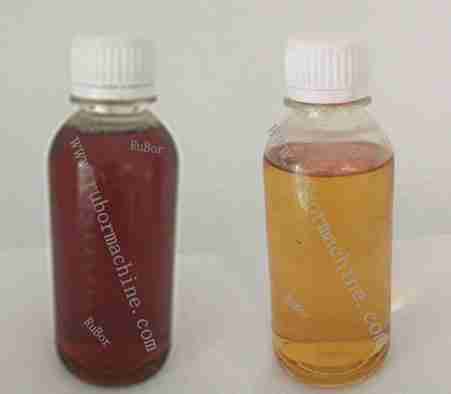

OPU & WPU

High-pressure chemical grouts technology is using the injection pumps to generate the continuous high pressure , inject the chemical liquid into the cracks of the concrete, and completely squeeze out the water in the cracks, and completely fill the gaps, so as to achieve the purpose of water stop.
